Aperçu ProduitsGrillage de corde d'acier inoxydable

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

Certificat
LA CHINE Anping Velp Wire Mesh Products Co.,Ltd certifications
LA CHINE Anping Velp Wire Mesh Products Co.,Ltd certifications
Examens de client
La bonne réponse, la bonne qualité, et la livraison opportune, le gardent !

—— Vicente

Un des meilleurs associés que nous avons jamais eus dans le produit et service de China.Excellent. Les produits sont arrivés dans des bonnes conditions mêmes, producerfulfill la promesse de fournir la qualité accordant des spécifications demandées. La communication pendant et après la fabrication était parfaite. Je recommande chaudement le fil Mesh Products Co d'Anping Velp. , Ltd pour la qualité des services.

—— Paul

Tout était ok.and superbe que le fournisseur a répondu aux attentes concernant la qualité du produit. Aide professionnelle.

—— Elizabeth

Je suis en ligne une discussion en ligne

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

Image Grand :  Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: VELP
Certification: SGS
Numéro de modèle: 001
Conditions de paiement et expédition:
Quantité de commande min: 50 m²
Prix: USD5-USD10/sqm
Détails d'emballage: Case en bois + ceintures de sécurité
Délai de livraison: 5-8 jours de travail
Conditions de paiement: T / T, L / C, Western Union
Capacité d'approvisionnement: 30000% par mois

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling

description de
Nom de produit: treillis métallique en acier inoxydable pour garde-corps Matériel: fil de corde d'acier inoxydable
Forme de trou: Forme de trou de diamant Usage: Grillage de clôture de protection, grillage décoratif, grillage zoo.
Échantillon: Disponible et gratuit pour les feuilles de petit format, nombreux échantillons en stock Ouverture de maille: 20*20mm--300*300mm
Épaisseur: 1,2 mm, 1,6 mm, 2,0 mm, 2,4 mm, personnalisés Taille: Personnalisé selon la demande
Mettre en évidence:

Long Time Service Durable Stainless Steel Rope Mesh

,

UV Protection Wire Cable Mesh

,

Customizable Size SS Rope Mesh

Long Time Service Durable Stainless Steel Rope Mesh For Handrail Filling
Our high-quality stainless steel wire rope mesh (also called cable mesh) offers exceptional corrosion resistance and UV protection, making it ideal for harsh environments. Available in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps, this versatile solution is favored by architects worldwide.
  • The ferrule rope mesh consists of ferrules and rope, with ferrules being essential components that determine the size and longevity of the mesh
  • Ferrules are available in stainless steel and aluminum variants - for marine environments, we recommend 316 stainless steel ferrules for superior corrosion resistance
  • All mesh is handcrafted, whether woven type or ferrule type
Product Attributes
Attribute Value
Material Stainless Steel 304/316/304L/316L
Product Name SS stainless steel wire cable mesh
Hole Shape Diamond hole shape
Usage Protecting mesh, decorative wire mesh, etc.
Length Customized: 10m/roll, 30m/roll, 50m/roll
Width 0.1m-8m, customized size
Sample Available and free (by air, 30*30cm)
Mesh Aperture 20mm*20mm-300mm*300mm
Warranty 10 years warranty
Thickness 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm
Technical Specifications
Specification Details
Material Stainless steel 304 304L 316 316L
Rope Diameter 1/8" 3/32" 1/16" 3/64" and other diameters available
Rope Construction 7*7 and 7*19 (1*7 and 7*19 also available)
Mesh Apertures 1"*1" 1-1/2"*1-1/2" 2"*2" 3"*3" 4"*4"
Application Decorations, safety fence, animal enclosure, bird netting, railings
Connection Knotted or with ferrules
Product Applications
  • Building Facade screens
  • Green wall systems
  • Balustrade & Railing
  • Bird protection netting
  • Security platform fence
  • Isolate fence
  • Garden fence
  • Animal enclosures in zoo
Product Features
  • The mesh is clipped to the cable
  • The hole size and diameter can be modified
  • Can be made to customer orders and statically tested - especially suitable for facades
  • High strength, strong toughness, free-angles curving and fold, easy for transportation and installment
  • Anti-corrosive, resist the rust, can be repeated use
  • Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
  • Can bear heavy snow and strong winds
  • Without toxic material, safety, environmental protection
Key Advantages
  • Excellent flexible performance for versatile installations
  • Virtually indestructible construction
  • Superior impact resistance against rain, snow, and hurricanes
  • High strength with strong toughness, allowing free-angle curving and folding
  • Extended service life exceeding 30 years
Our Service
Our 20,000 sqm factory in Anping County, China features three specialized workshops for different product lines. We offer comprehensive support including:
  • Online Technical Support
  • Onsite Installation
  • Onsite Training
  • Onsite Inspection
  • Free Spare Parts
  • Return and Replacement
  • 3D model design
Packaging
Standard packaging includes wooden cases. Special packaging options are available upon request to meet specific shipping or handling requirements.
Product Images

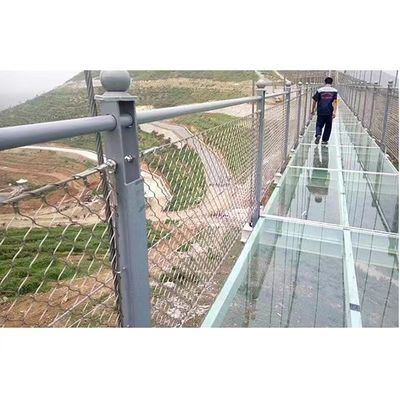

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 0
Stainless steel wire rope mesh product overview
Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 1
Close-up view of stainless steel rope mesh structure
Balustrade Applications

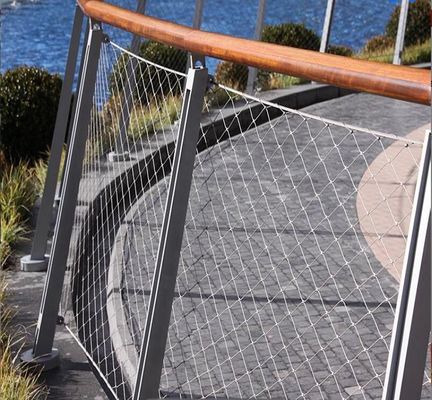

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 2
Stainless steel rope mesh used in balustrade application

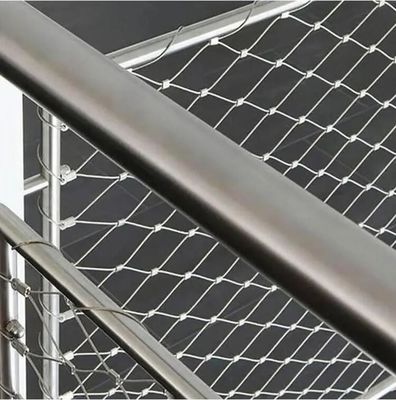

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 3
Architectural use of stainless steel rope mesh
Zoo Mesh Applications

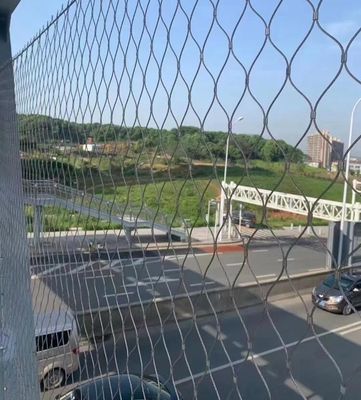

Long Time Service Durable UV Protection Customizable Size Stainless Steel Rope Mesh for Handrail Filling 4
Stainless steel rope mesh used in zoo enclosure
